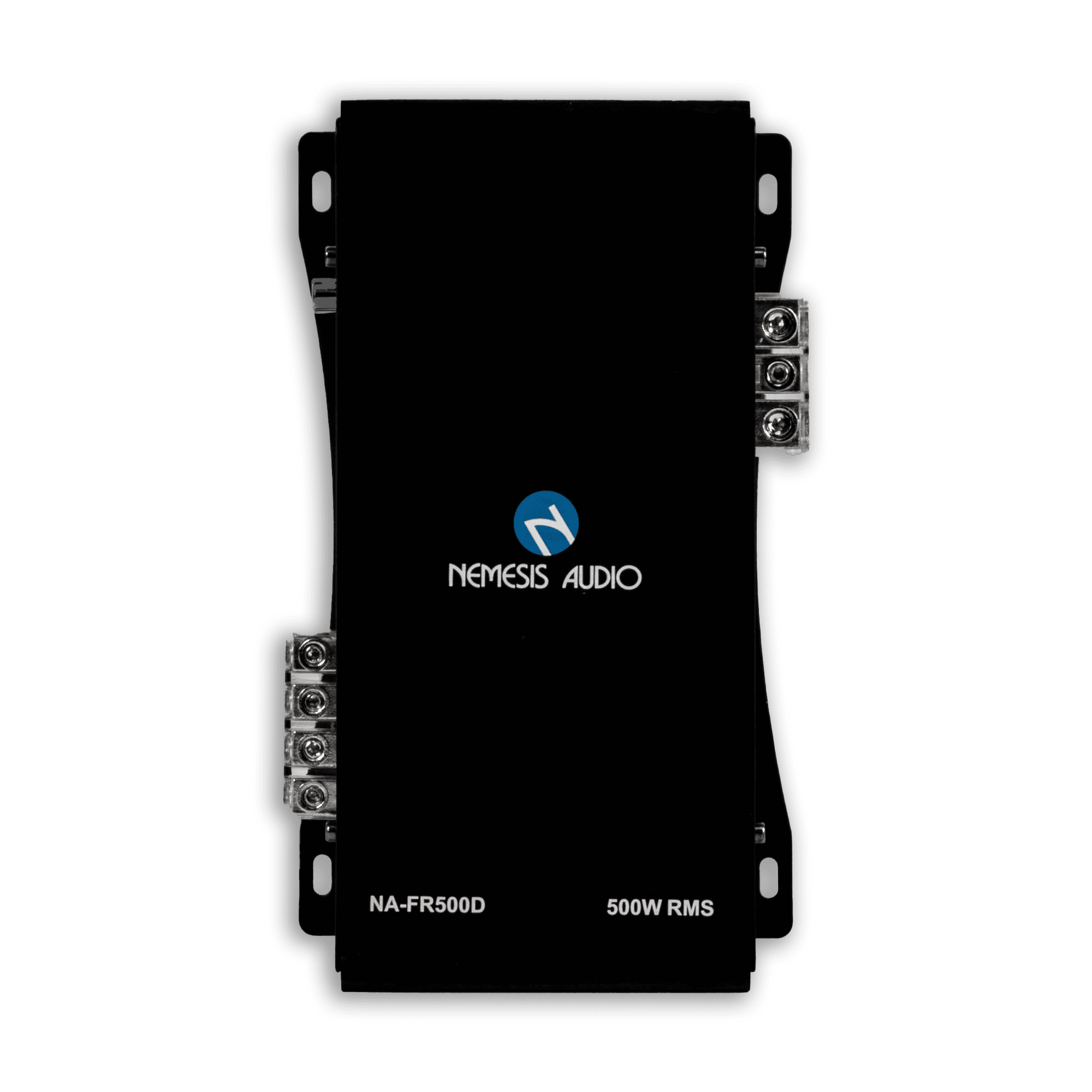

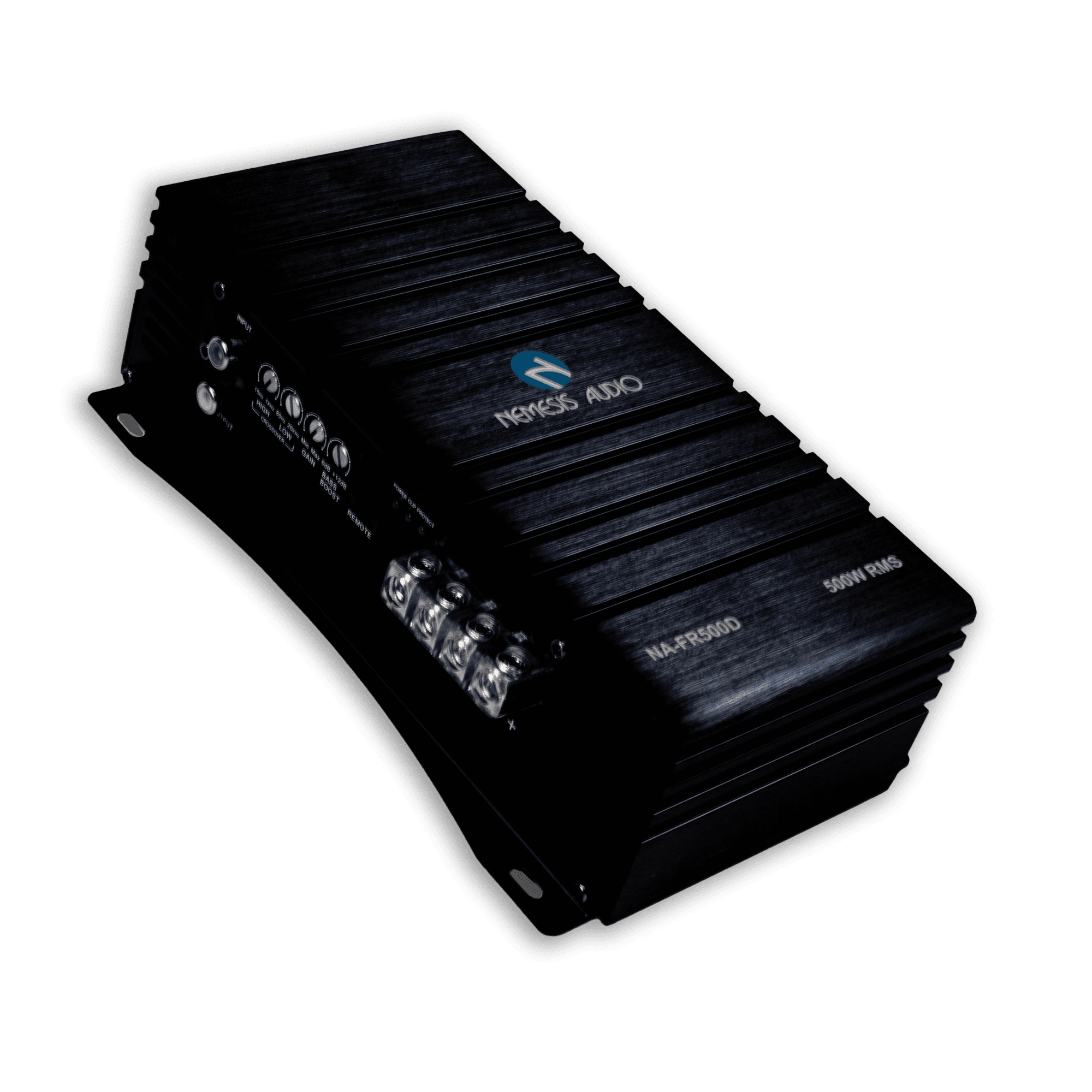

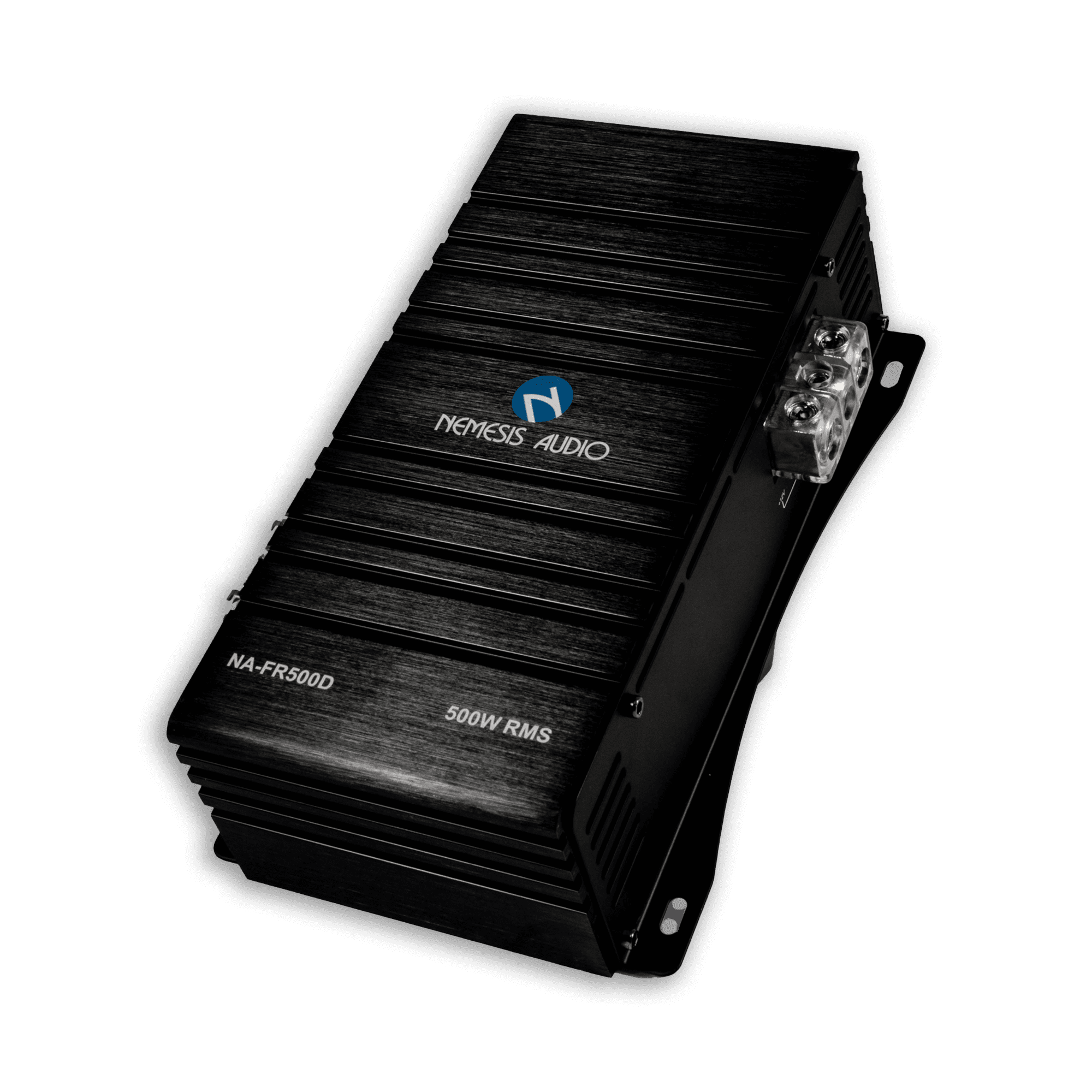

500W RMS 1-Channel Monoblock Class-D Full-Range Car Amplifier

1 Ch Full-Range Class D Amplifier
Maximum Output Power @ 14.4V (4-Ohm) 200W RMS
Maximum Output Power @ 14.4V (2-Ohm) 250W RMS
Maximum Output Power @ 14.4V (1-Ohm) 500W RMS
Input Sensitivity: 200MV
Signal-to-Noise Ratio: 100dB
Frequency Response: 10Hz-20KHz (3dB)
H.P.F. (High Pass Filter) 15Hz-80Hz (-12dB/8) Variable
L.P.F. (Low Pass Filter) 80Hz-20KHz (-12dB/8) Variable
Bass Boost: 0-12dB (50Hz)
Input Impedance: 56k Ohms
Protection System: Output Short/High/Low Supply
Voltage/Thermal Protection
Minimum Supply Voltage: 9V
Maximum Supply Voltage: 16V
